Gate valve
Write your txt here...

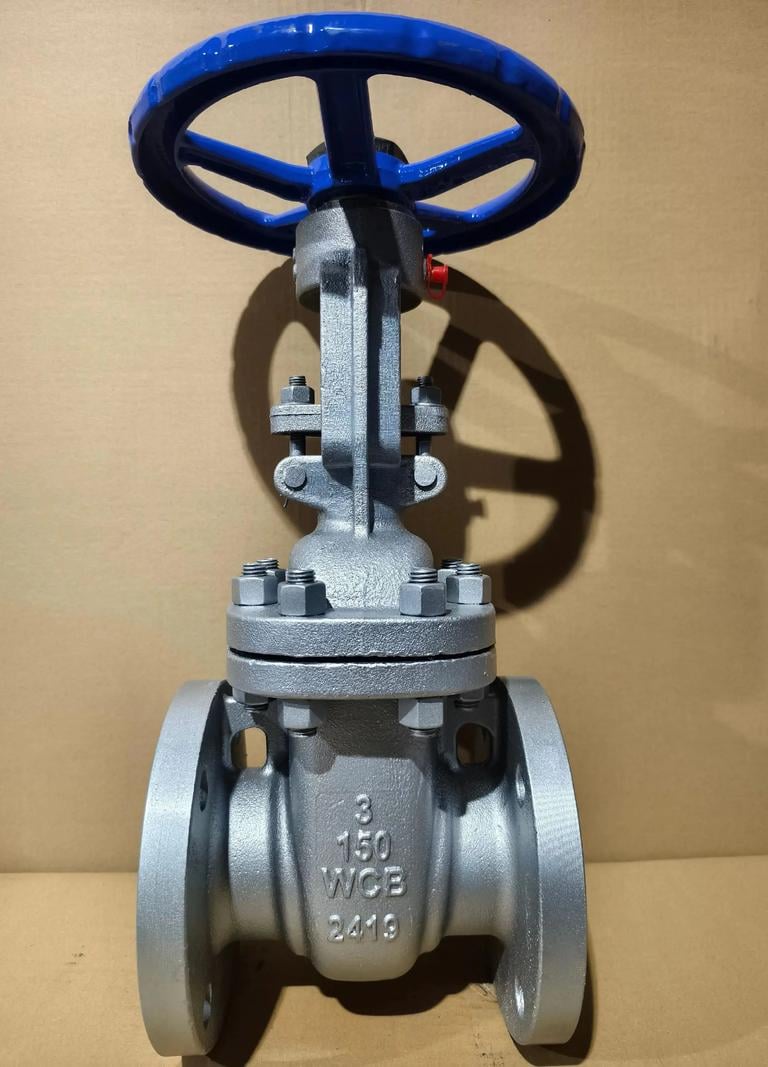

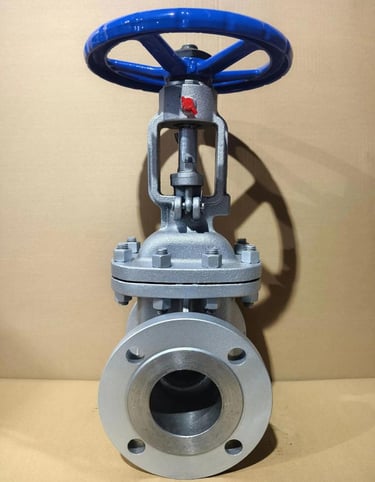

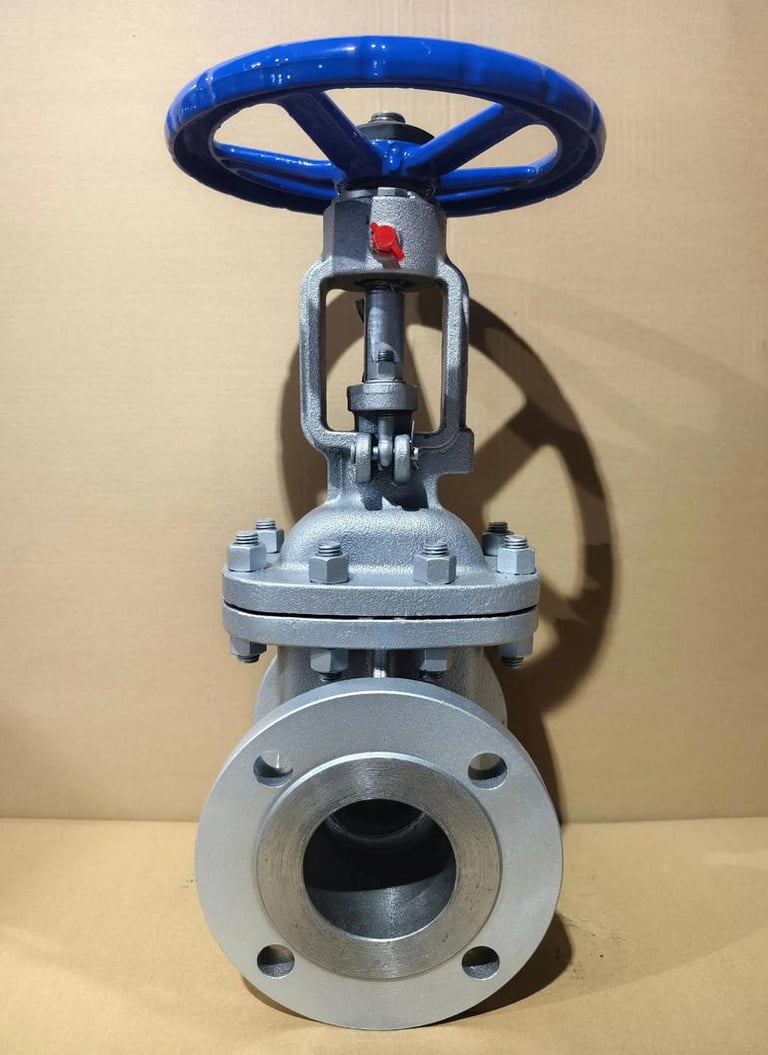

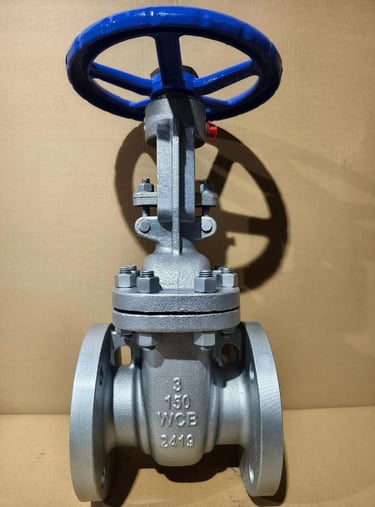

🌐 Product Overview – Gate Valv Gate valves are commonly used shut-off valves, widely applied in systems requiring bi-directional flow. They are typically used in a fully open or fully closed position and are not suitable for partial opening or throttling applications.
Neway wedge gate valves comply with API 600 and ASME B16.34 standards, offering a wide range of product options to meet diverse application requirements.
🔩 Specifications
Size Range: 2" ~ 88" (DN50 ~ DN2200)
Pressure Class: ASME CLASS 150 ~ 4500 (PN16 ~ PN760)
Body Materials:
Carbon Steel
Stainless Steel
Alloy Steel
Duplex Stainless Steel
Low Temperature Steel
Nickel-based Alloys
Titanium Alloy
End Connections:
RF (Raised Face)
BW (Butt Weld)
RTJ (Ring Type Joint)
Operation Methods:
Manual
Gear Operated
Pneumatic
Electric
Globe Valve

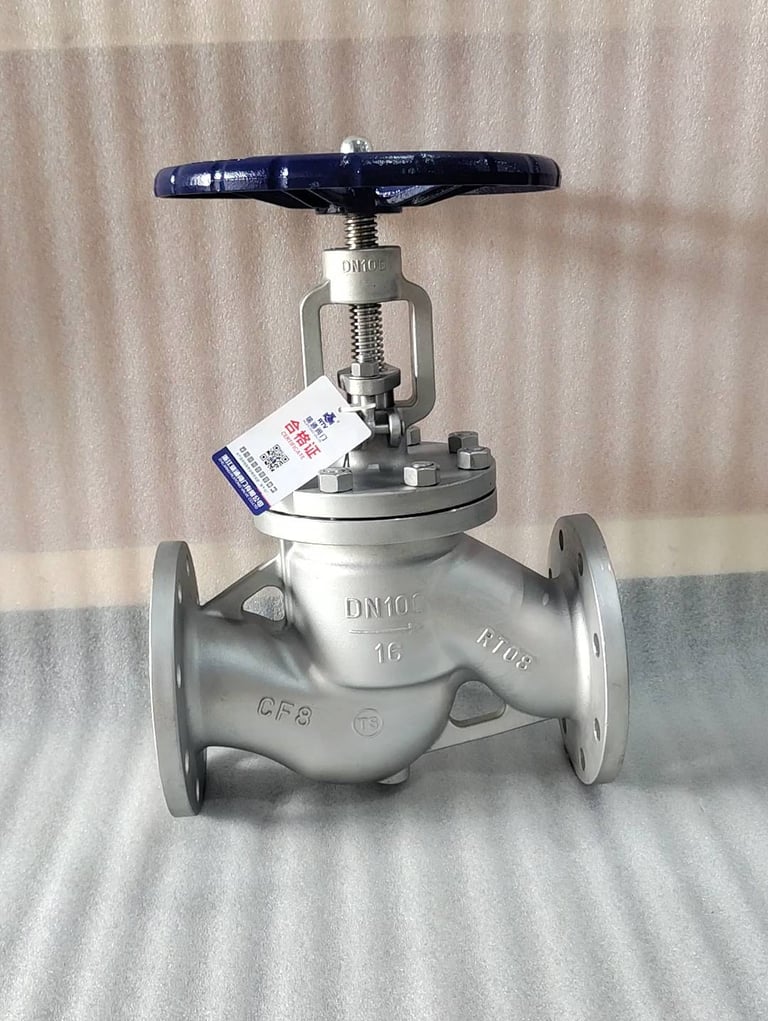

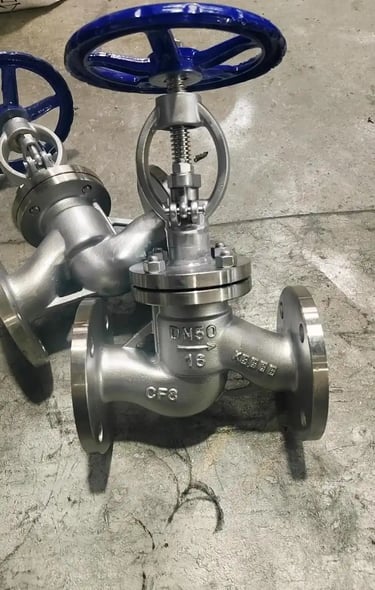

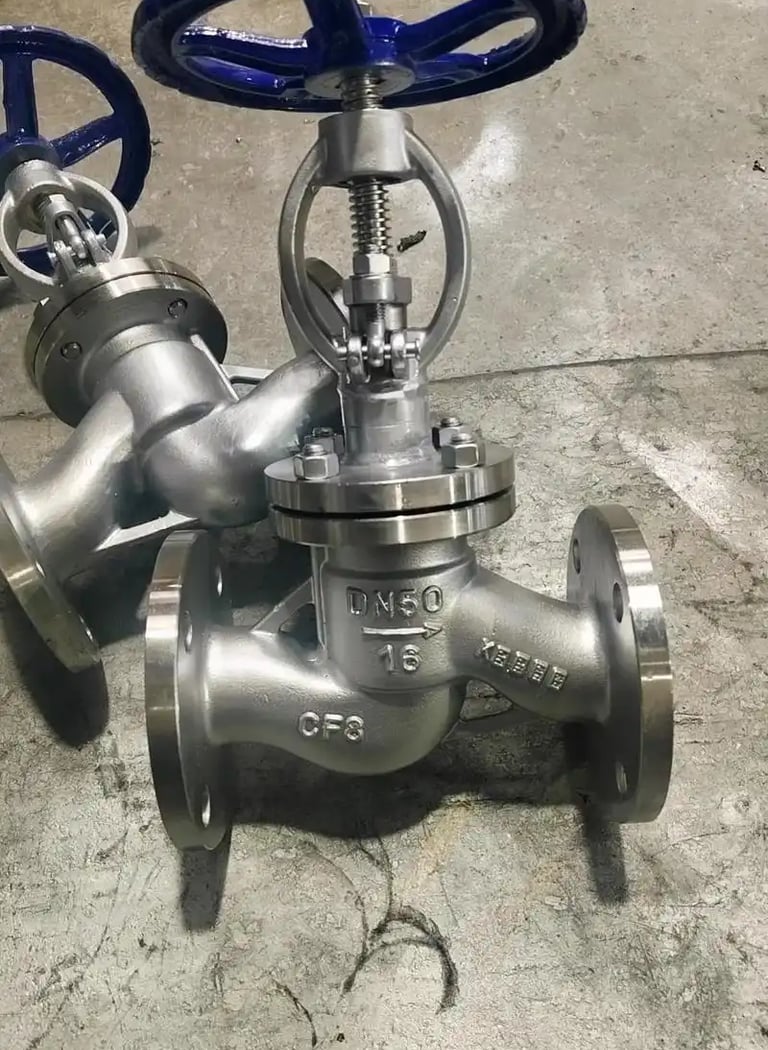

🌐 Product Overview – Globe Valve
Globe valves are forced-sealing valves, typically used as isolation valves to separate media in pipeline systems. They feature a low valve opening height, short stroke, and quick open/close time, making them ideal for applications requiring frequent operation.
Neway offers two structural options:
Rising Stem
Rotating Rising Stem
We provide a full range of valve configurations, including:
T-type
Y-type
Angle Type valves.
🔩 Specifications
Size Range: 2" ~ 24" (DN50 ~ DN600)
Pressure Class: ASME CLASS 150 ~ 4500 (PN16 ~ PN760)
Body Materials:
Carbon Steel
Stainless Steel
Alloy Steel
Duplex Stainless Steel
Low Temperature Steel
Nickel-based Alloys
Titanium Alloy
End Connections:
RF (Raised Face)
BW (Butt Weld)
RTJ (Ring Type Joint)
Operation Methods:
Manual
Gear Operated
Pneumatic
Electric
Hydraulic
Ball valve

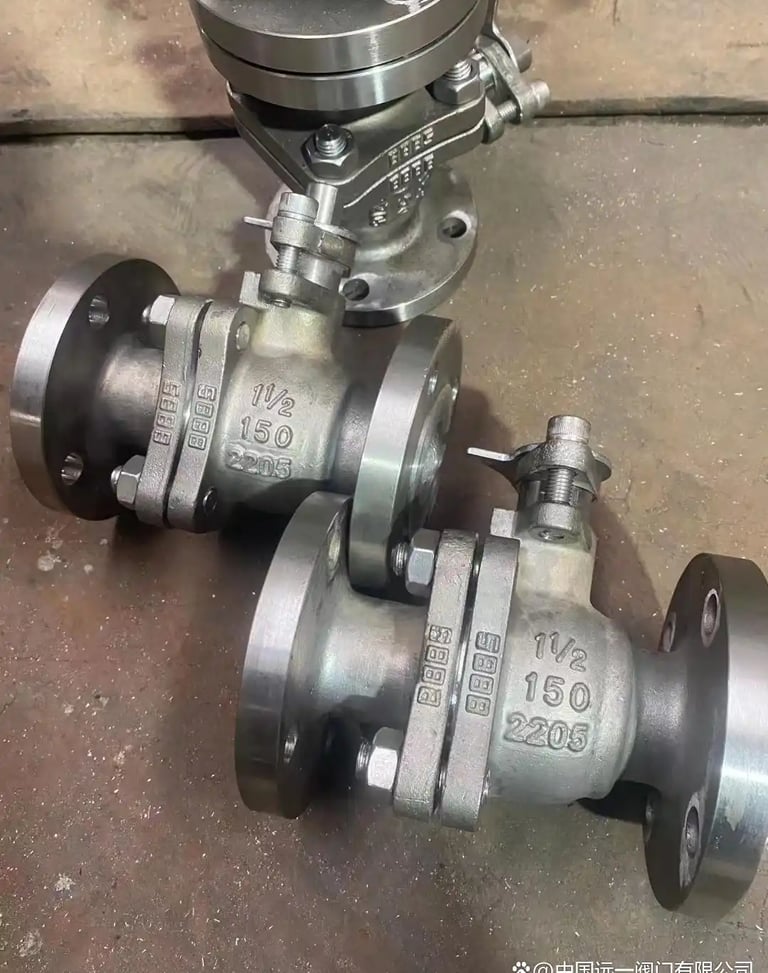

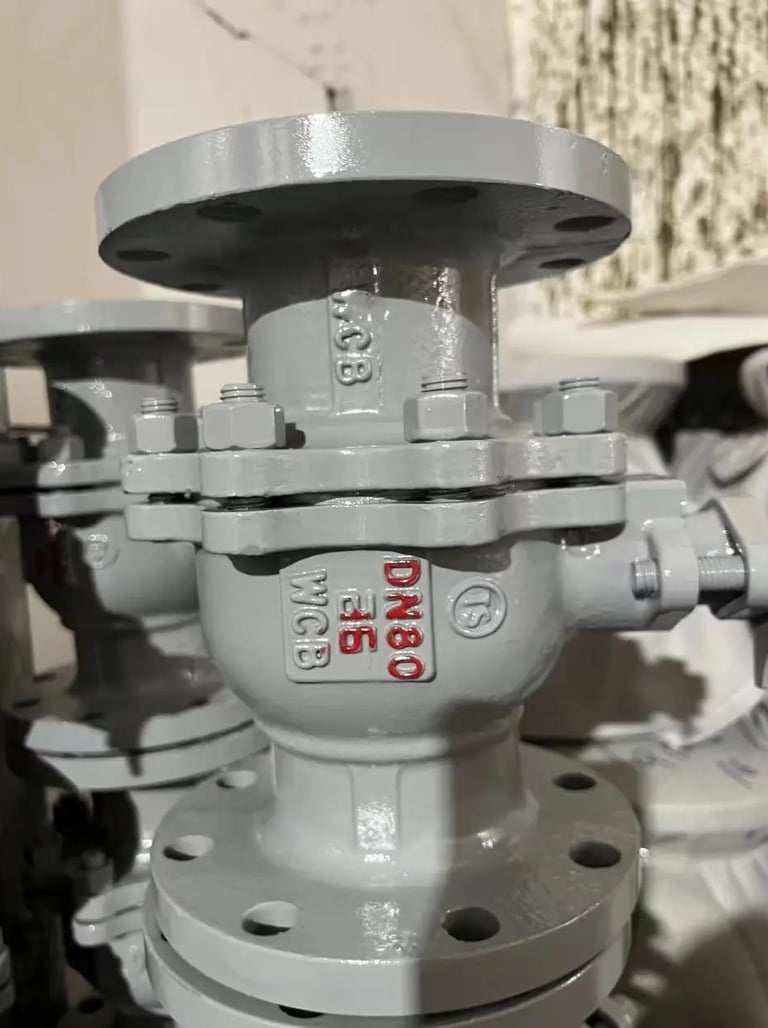

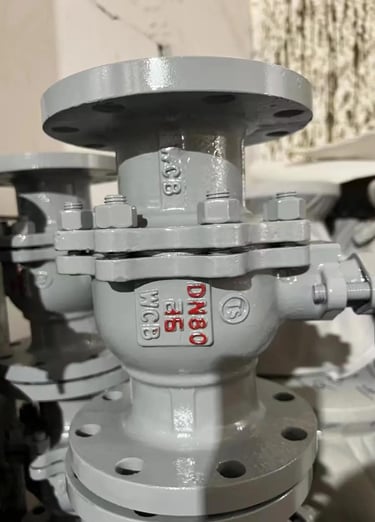

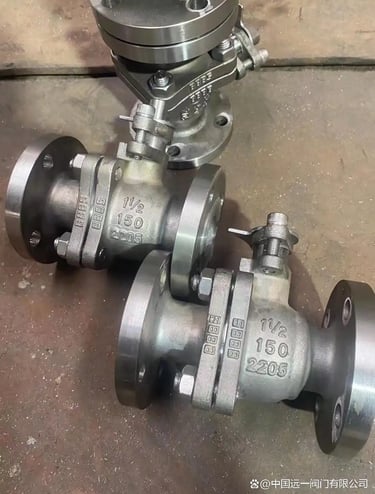

🌐 Product Overview – Ball Valve
Ball valves are designed with either a one-piece body design or a two-piece split-body design, in compliance with ISO17292 standards. This series of ball valves is typically suited for low-pressure conditions (150~300LB), with a temperature range from -46°C to 200°C. All valves in this series feature a fire-safe design and have passed fire testing according to API607 and API6FA, with Lloyd's certification.
🔩 Specifications
Size Range: 1/2" ~ 10" (DN15 ~ DN250)
Pressure Class: ASME CLASS 150 ~ 300 (PN16 ~ PN40)
Body Materials:
Carbon Steel
Stainless Steel
Alloy Steel
Duplex Stainless Steel
Nickel-based Alloys
End Connections:
Flanged End
Butt Weld End
Operation Methods:
Manual
Pneumatic
Electric
Hydraulic

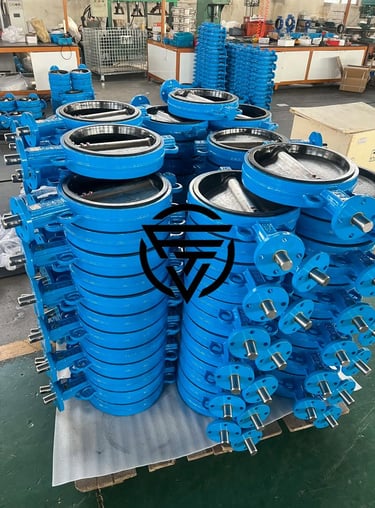

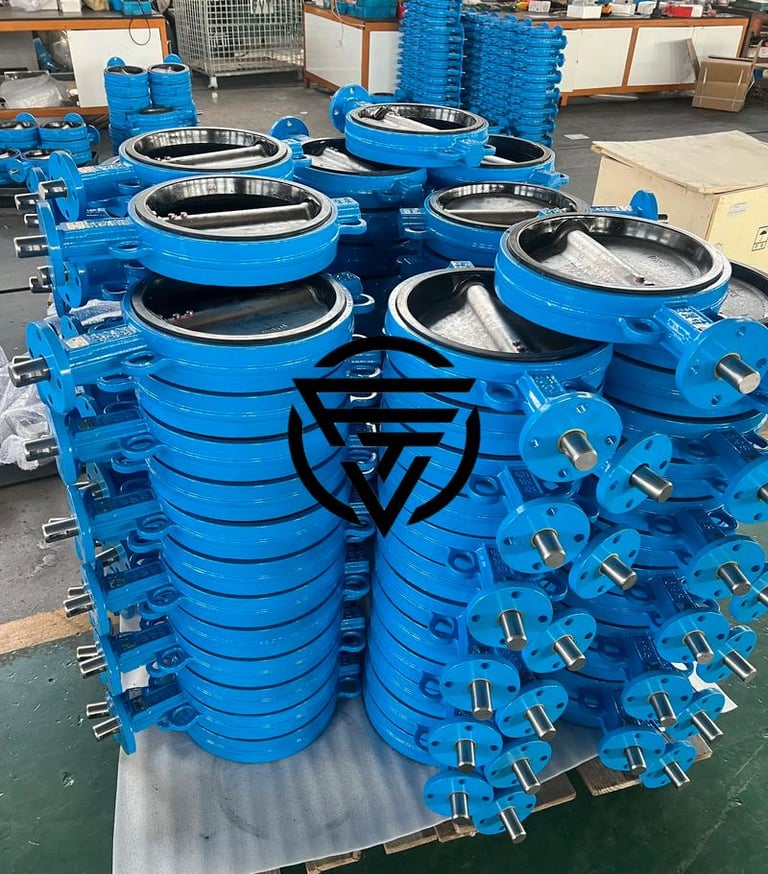

🌐 Product Overview – Soft-Seal Elastic Seat Centerline Butterfly Valve
The soft-seal elastic seat centerline butterfly valve combines the functions of both on/off and flow regulation, widely used in various industrial fluid control systems. The fully rubber-coated valve body ensures complete isolation from the medium, making it suitable for corrosive environments. Compared to traditional gate valves, globe valves, and ball valves, it is lightweight and cost-effective.
With the rapid development of various synthetic rubber industries, the soft-seal elastic seat valve is not only applicable to traditional water treatment industries, but also to a variety of modern chemical industries. The Neway centerline butterfly valve features a concentric design and complies with the API609 standard.
🔩 Specifications
Size Range: 2" ~ 72" (DN50 ~ DN1800)
Pressure Class: 85 ~ 232 Psi (PN6 ~ PN16)
Body Materials:
Ductile Iron
Cast Steel
Stainless Steel
Copper
End Connections:
Wafer
Lug
RF (Raised Face)
Operation Methods:
Manual
Gearbox
Electric
Pneumatic
Hydraulic.

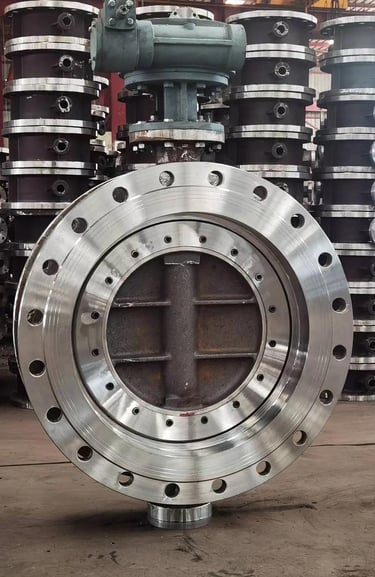

Butterfly valve
Pressure reducing control valve

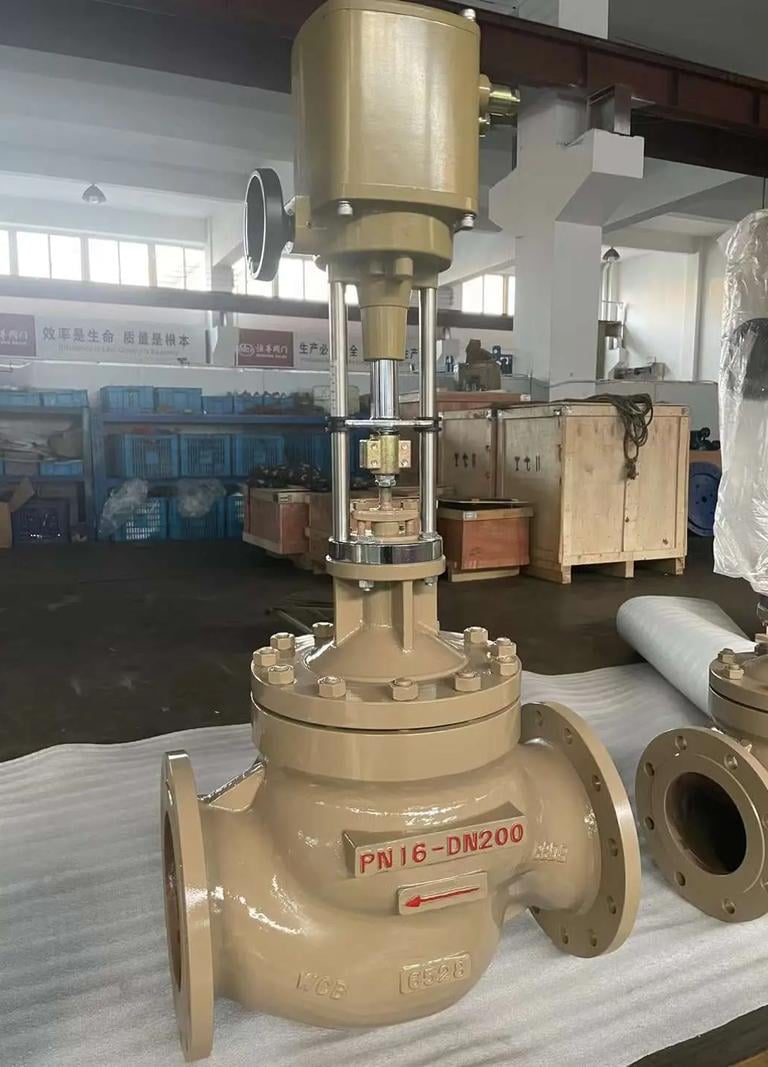

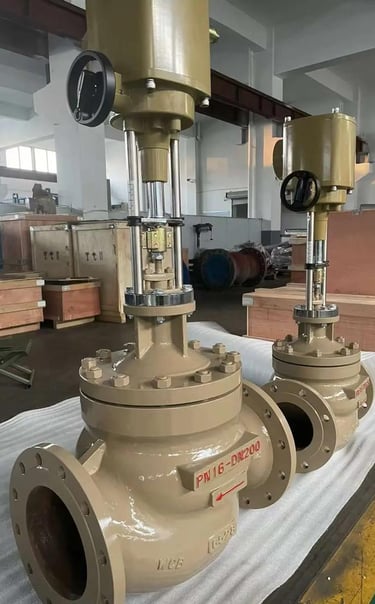

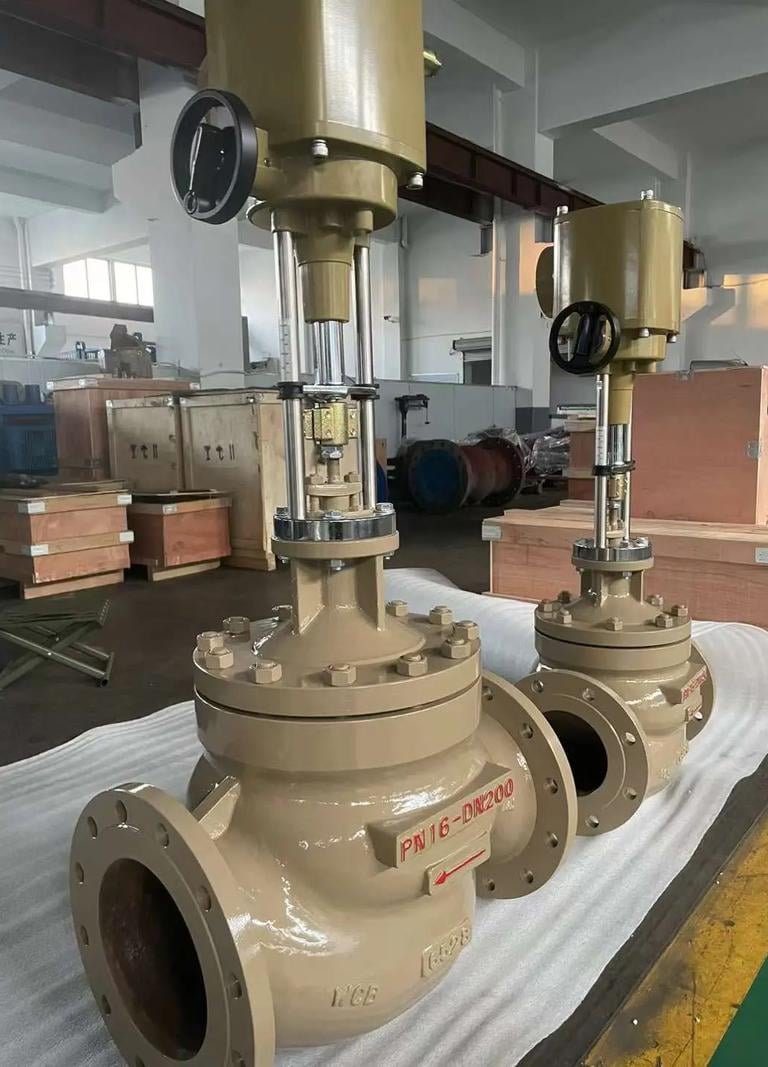

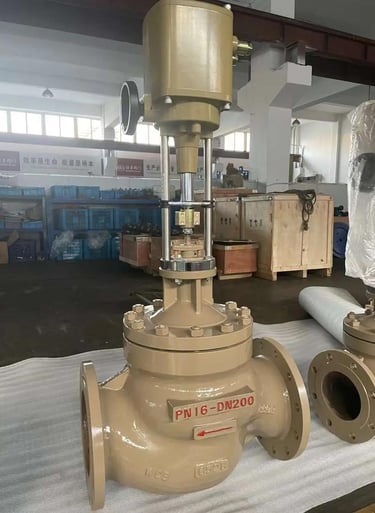

🌐 Product Overview – Multi-Stage Pressure Reducing Control Valve
pressure reducing control valve utilizes a multi-stage sleeve design for pressure reduction. The valve body features an S-shaped flow path design, which minimizes fluid resistance and enhances flow capacity. The valve plug adopts a balanced structure, ensuring smooth regulation and strong resistance to pressure differential.
Depending on the pressure differential across the valve, the valve employs 1 to 3 stages of sleeve pressure reduction, effectively preventing flashing and cavitation.
🔩 Specifications
Size Range: 1-1/2" ~ 12" (DN40 ~ DN300)
Pressure Class: ASME CLASS 600 ~ 2500 (PN63 ~ PN420)
Body Materials:
Carbon Steel
Stainless Steel
Alloy Steel
Duplex Stainless Steel
Operation Methods:
PDL Pneumatic Diaphragm Actuator
PCL Pneumatic Piston Actuator
Electric Actuator
Spring-loaded safety valve

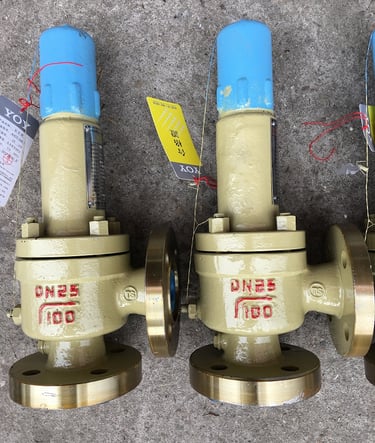

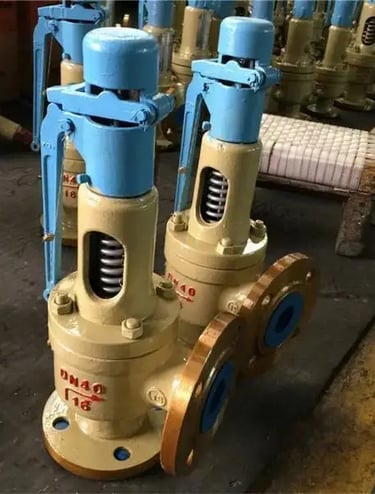

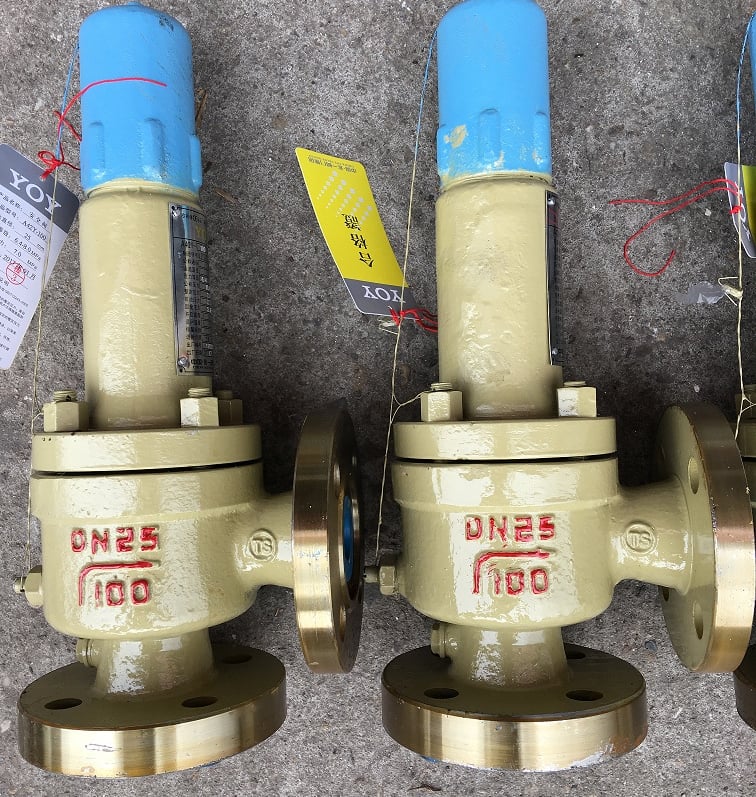

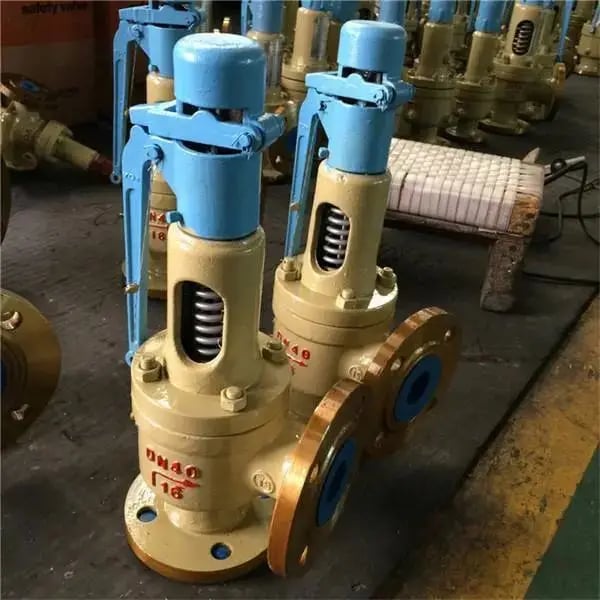

🌐 Product Overview – Spring-Loaded Full Open and Closed Safety Valve
Overview:
The A42Y-C type safety valve is designed for equipment and pipelines with working temperatures of ≤300°C, suitable for air, petroleum gas, liquids, and other media. It serves as a reliable overpressure protection device.
The A42Y-P and A42Y-R types are suitable for equipment and pipelines handling corrosive media with working temperatures of ≤200°C, providing effective overpressure protection in corrosive environments.
Flanged Connection Standards:
JB/T …-94 Series 1: for pressure ratings ≥6.4 MPa
JB/T …-94 Series 2: for other applicable pressure ratings
Key Features:
Spring-loaded design ensures rapid response to overpressure.
Full open and full closed functionality provides reliable system protection.
Durable materials suitable for general and corrosive media.
Flexible installation: can be installed horizontally or vertically.
Applications:
Industrial pipelines and equipment
High-rise residential water and heating systems
Boilers, heat exchangers, and circulation systems
Fire protection systems
Summary:
These spring-loaded safety valves provide reliable, fast-acting overpressure protection for a wide range of media and working conditions, with options for corrosive and non-corrosive environments.
